Overview

半自动圆压圆模切机

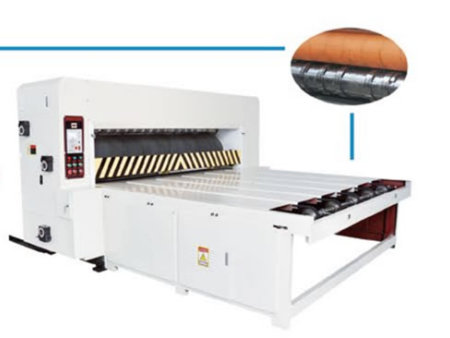

Automatic rotary die cutting machine

半自动圆压圆模切机

Automatic rotary die cutting machine

Automatic rotary die cutting mac

主要机构性能：

◆ 链条送纸

◆ 胶垫辊机械螺旋式横向移动，移动距离为40mm。

◆ 模切辊相位采用电动数字式360度调整，停机及运转情况下均可调整。

◆ 胶垫辊与模切辊间隙调整采用自锁结构，并配有气缸大范围快速调整，减少胶垫损坏，增加胶垫使用寿命。

◆ 送纸辊间隙调整采用自锁结构。

◆ 速度补偿装置，可使优力胶辊随模版辊滑动，从而使胶垫辊的表面速度由刀模控制，使模切的纸箱与刀模形状完全一致。

◆ 机器配有优力胶修正装置，可对优力胶反复多次修整后使用。

Performance of the main mechanisms:

◆ chain feed

◆ the rubber roller adopt mechanical control the position move left

and right.The movement distance is 40mm.

◆ The phase adopt electric 360°adjust, accord the error to input the

adjust data,can be adjusted while the machine running or stop.

◆ The space adjustment between rubber roller and die roller

adopt self-locking structure,with cylinder big scope quickly

adjust,decrease the rubber wear,increase the rubber life.

◆ The space adjustment between the feed rollers adopt self-locking structure.

◆ The unique speed compensation device can make the rubber roller rolling running with the

die roller,make the surface speed of the rubber cushion is completely controlled by the die

roller, the shape of the carton sheet will absolutely equal to the die pattern.

◆ There is a rubber repair device with the machine,the rubber can be used after be repaired.
